16-Port 10/100BASE-TX Fast Ethernet Switch
Brand: PLANET
In Stock
Model: FNSW-1601, SKU: 00105
Description
PLANET Green Networking Switch- FNSW-1601 is an ideal solution in line with the energy-saving trend worldwide. The FNSW-1601 is a 16-port 10/100BASE-TX Fast Ethernet Switch upgraded from earlier version and brings both benefits of energy saving and high performance.
MVR 967.93
Overview
Power-saving, High-performance Ethernet Networking
Brand-New Hardware DIP Switch for Functional Operation Modes Selection
The new hardware version of the FNSW-1601 offers “Standard”, “Flow Control Off”, “VLAN” and “Extend” modes.

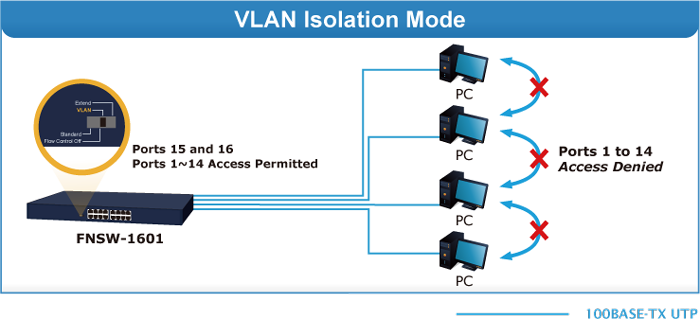

The FNSW-1601 operates as a normal Fast Ethernet Switch in the "Standard" operation mode. The "VLAN" operation mode features port-based VLAN function that can help to prevent the connected clients’ multicast or broadcast storm from influencing each other.
In the "Extend" operation mode, the FNSW-1601 operates on a per-port basis at 10Mbps duplex operation but can transmit data over a distance of up to 200 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the FNSW-1601 provides an additional solution for distance extension, thus saving the cost of Ethernet cable installation. Its VLAN isolation function isolates each port so as to prevent broadcast storm and defend DHCP spoofing in the “Extend” operation mode.
