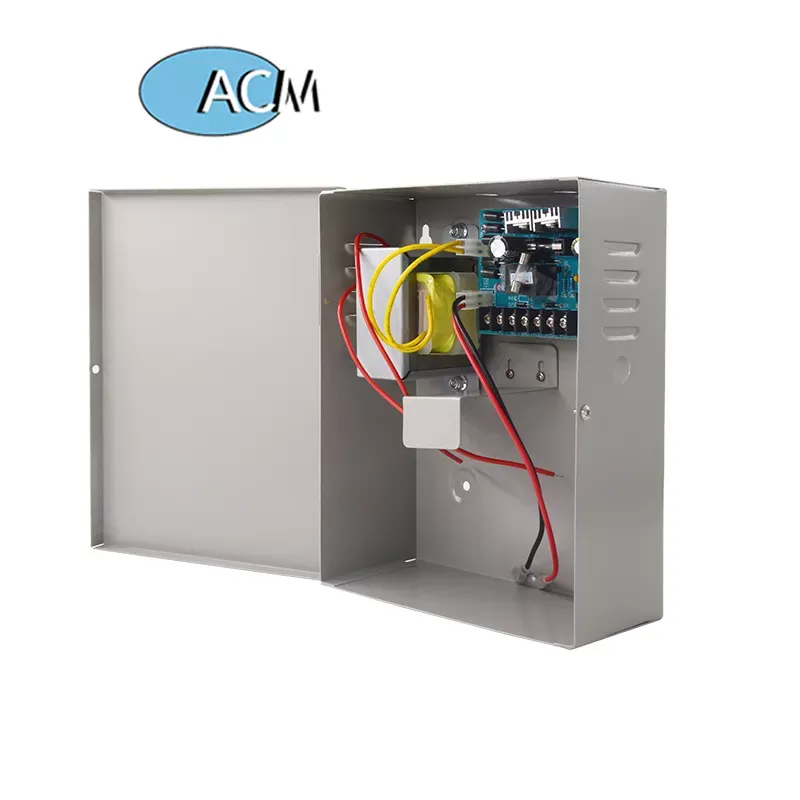

Access Control Box Power Supply 5A 12V
Brand: ACM
In Stock
Model: ACM-Y806-5A, SKU: 00840
Description
5A Current Power Supply. Built-in reverse surge protection and Short- circuit protection function. This power supply is suitable for building intercom, various entrances access control, particularly suitable for all kind of locks.
MVR 500
Overview
size 20316372mm
ripple voltage Up ≤ 50mV
Input voltage AC 220V
Input Frequency 50Hz
Output voltage DC12V
Output current (optional) 1A/3A/5A
Output voltage trim range +_10%~+_15%
Load stability 1%typical
Time Delay 0~15sec.
Output Contact Access control, Electric Lock, Release Button
Hold time at full load typ 20ms
Working temperature 20~+65°C
Standard Designe Steel material, Painted
protect safetyShort Circuit protection
Suitable For Access control, Electric lock
Warranty 6 months
